STP6NK90Z - N-Channel MOSFET

STP6NK90Z Description

Isc N-Channel MOSFET Transistor INCHANGE Semiconductor STP6NK90Z *.

STP6NK90Z Features

* Typical RDS(on)=1.56Ω
* With low gate drive requirements
* Easy to drive
* 100% avalanche tested
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP6NK90Z Applications

* Ideal for off-line powersupplies adaptors and PFC
* Lighting
* High current，high speed switching
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE VDSS Drain-Source Voltage 900 VGSS ID IDM Gate-Source Voltage Drain Current-Continuous@TC=25℃ TC=100℃ Drain Current-Single

📥 Download Datasheet

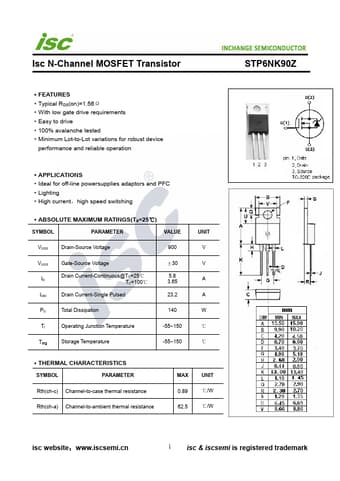

Preview of STP6NK90Z PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP6NK90Z
Manufacturer
INCHANGE
File Size
202.74 KB
Datasheet
STP6NK90Z-INCHANGE.pdf
Description
N-Channel MOSFET
