STP60NF10 - N-Channel MOSFET

STP60NF10 Description

isc N-Channel Mosfet Transistor INCHANGE Semiconductor STP60NF10 *.

STP60NF10 Features

* Drain Current ID= 80A@ TC=25℃
* Drain Source Voltage- : VDSS= 100V(Min)
* Fast Switching Speed
* Minimum Lot-to-Lot variations for robust device performance and reliable operation

STP60NF10 Applications

* Switching mode power supplies
* General purpose power amplifier
* ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 100 V VGS Gate-Source Voltage ±20 V ID Drain Current-continuous@ TC=25℃ 80 A ID(puls) Pulse Drain Current 300

📥 Download Datasheet

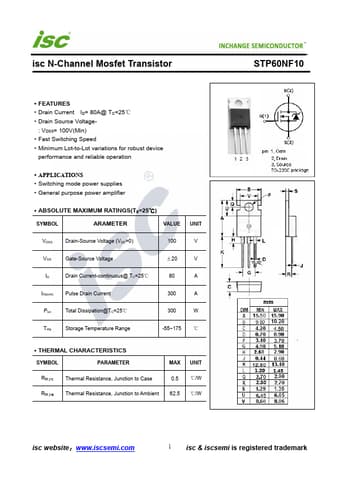

Preview of STP60NF10 PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP60NF10
Manufacturer
INCHANGE
File Size
224.84 KB
Datasheet
STP60NF10-INCHANGE.pdf
Description
N-Channel MOSFET
