STP6NK60Z - N-Channel MOSFET

STP6NK60Z Description

isc N-Channel MOSFET Transistor .
Drain Current ID= 6A@ TC=25℃. Drain Source Voltage- : VDSS= 600V(Min). Fast Switching Speed. 100% avalanche tested. Minimum Lot-t.

STP6NK60Z Applications

* Designed for high speed switching applications in switching power supplies and adaptors INCHANGE Semiconductor STP6NK60Z ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL PARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@

📥 Download Datasheet

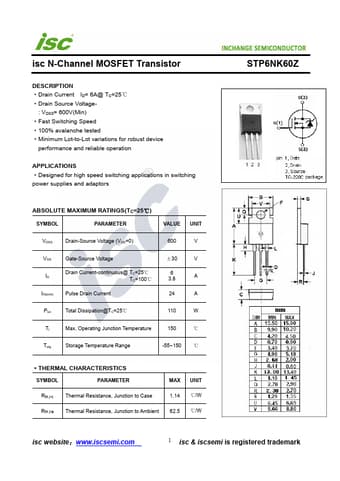

Preview of STP6NK60Z PDF
datasheet Preview Page 2

Datasheet Details

Part number
STP6NK60Z
Manufacturer
INCHANGE
File Size
204.40 KB
Datasheet
STP6NK60Z-INCHANGE.pdf
Description
N-Channel MOSFET
