TSF20L100C - Schottky Barrier Rectifier

TSF20L100C Description

Schottky Barrier Rectifier .

TSF20L100C Features

* Low Forward Voltage
* Low Power Loss/High Efficiency
* High Surge Capacity

TSF20L100C Applications

* Designed for high frequency miniature switched mode power supplies such as adapters, lighting and on-board DC/DC converters. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage 100 V

📥 Download Datasheet

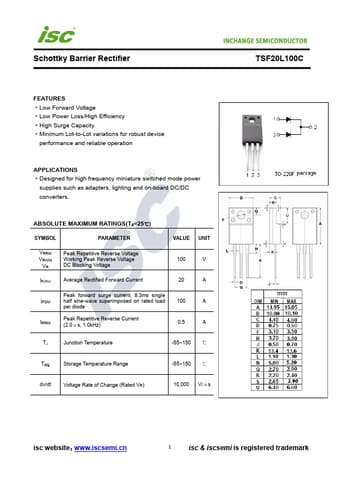

Preview of TSF20L100C PDF
datasheet Preview Page 2

Datasheet Details

Part number
TSF20L100C
Manufacturer
INCHANGE
File Size
202.65 KB
Datasheet
TSF20L100C-INCHANGE.pdf
Description
Schottky Barrier Rectifier
