TSF20L120C, TSF20L100C Datasheet - Taiwan Semiconductor

TSF20L120C Trench Schottky Rectifier

Green compound RATINGS AND CHARACTERISTICS CURVES (TA = 25°C unless otherwise noted) AVERAGE FORWARD CURRENT (A) FIG. 1 FORWARD CURRENT DERATING CURVE 25 20 15 10 WITH HEATSINK 5 3in x 5in x 0.25in Al-Plate 0 0 25 50 75 100 125 150 CASE TEMPERATURE (oC) INSTANTANEOUS FORWARD CURRENT .

TSF20L120C Features

* - Patented Trench Schottky technology - Excellent high temperature stability - Low forward voltage - Low power loss/ high efficiency - High forward surge capability - Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC - Halogen-free according to IEC 61249-2-21 definition TYP

TSF20L100C-TaiwanSemiconductor.pdf

This datasheet PDF includes multiple part numbers: TSF20L120C, TSF20L100C. Please refer to the document for exact specifications by model.

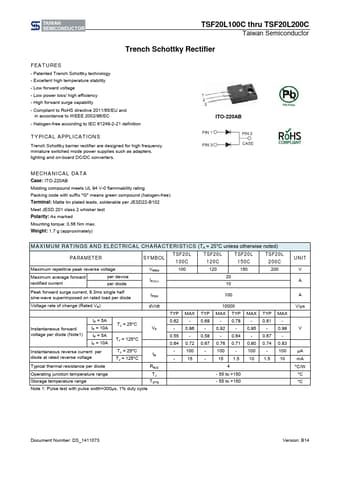

TSF20L120C Datasheet Preview Page 2 TSF20L120C Datasheet Preview Page 3
