IS61LV25616 256K x 16 HIGH SPEED ASYNCHRONOUS CMOS STATIC RAM

The ISSI IS61LV25616 is a high-speed, 4,194,304-bit static RAM organized as 262,144 words by 16 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devi.

IS61LV25616 Features

* High-speed access time:

* 7, 8, 10, 12, and 15 ns

* CMOS low power operation

* Low stand-by power:

* Less than 5 mA (typ.) CMOS stand-by

* TTL compatible interface levels

* Single 3.3V power supply

* Fully static operation: no clock o

IS61LV25616 Datasheet (121.81 KB)

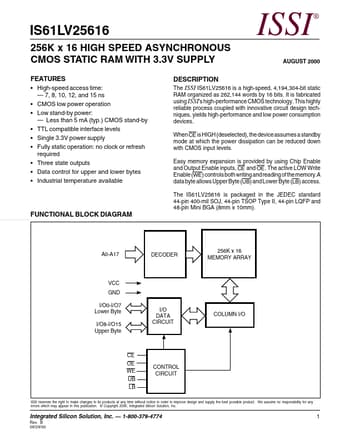

IS61LV25616 Datasheet Preview — Preview of IS61LV25616 PDF

Datasheet Details

Part number:

IS61LV25616

Manufacturer:

ISSI

File Size:

121.81 KB

Description:

256k x 16 high speed asynchronous cmos static ram.
