DSEI12-06A Datasheet, Diode, IXYS Corporation

DSEI12-06A Features

  • Diode / Advantages:
  • Planar passivated chips
  • Low leakage current
  • Very short recovery time
  • Improved thermal behaviour
  • Very low Irm-values

PDF File Details

Part number:

DSEI12-06A

Manufacturer:

IXYS Corporation

File Size:

170.29kb

Download:

📄 Datasheet

Description:

Fast recovery epitaxial diode.

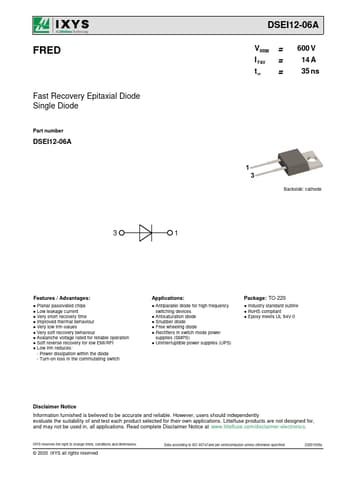

Datasheet Preview: DSEI12-06A 📥 Download PDF (170.29kb)
Page 2 of DSEI12-06A Page 3 of DSEI12-06A

DSEI12-06A Application

  • Applications
  • Antiparallel diode for high frequency switching devices
  • Antisaturation diode
  • Snubber diode
  • Fre
