IXFN64N50P HiPerFET Power MOSFET

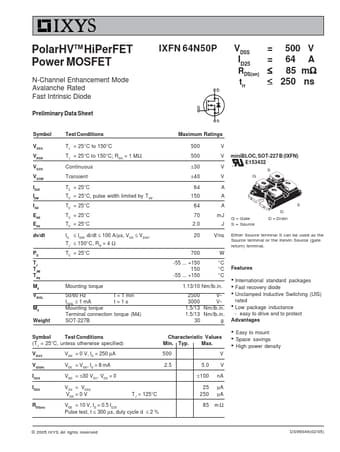

PolarHVTM HiPerFET Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode Preliminary Data Sheet IXFN 64N50P VDSS ID25 RDS(on) trr = 500 V = 64 A ≤ 85 mΩ ≤ 250 ns Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg Md VISOL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A/µs, VDD ≤ VDSS, TJ ≤ 150°C, RG = .

IXFN64N50P Features

* International standard packages Fast recovery diode z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect Advantages z z z miniBLOC, SOT-227 B (IXFN) E153432 S G S D G = Gate S = Source D = Drain Either Source terminal S can be used as the Source term
