IXGH32N60C Datasheet, Igbt, IXYS Corporation

IXGH32N60C Features

• Igbt
• International standard packages JEDEC TO-247 and surface mountable TO-268
• High current handling capability
• Latest generation HDMOSTM process
• MOS

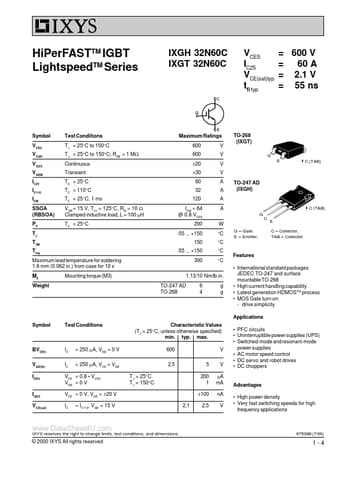

PDF File Details

Part number:

IXGH32N60C

Manufacturer:

IXYS Corporation

File Size:

117.18kb

Download:

📄 Datasheet

Description:

Igbt.

IXGH32N60C Application

• Applications Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting torque (M3) 1.13/10 Nm/lb.in. TO-247
