* z Medium frequency IGBT z Square RBSOA z High current handling capability z MOS Gate turn-on - drive simplicity Applications z PFC circuits z Uninterruptible power supplies (UPS) z Switched-mode and resonant-mode power supplies z AC motor speed control z DC servo and robot drives z DC choppers © 20
IXGH30N60B2D1 Datasheet (596.35 KB)
IXGH30N60B2D1
IXYS
596.35 KB
Igbt.

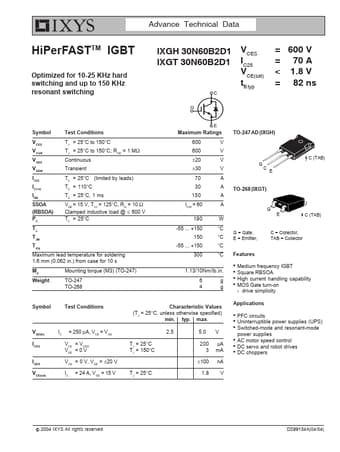

Advance Technical Data
HiPerFASTTM IGBT
Optimized for 10-25 KHz hard switching and up to 150 KHz resonant switching
IXGH 30N60B2D1 IXGT 30N60B2D1
V.
