* International standard packages JEDEC TO-247 SMD surface mountable and JEDEC TO-247 AD High frequency IGBT and antiparallel FRED in one package High current handling capability Newest generation HDMOSTM process MOS Gate turn-on - drive simplicity Applications AC motor speed control DC
IXGH30N60BU1 Datasheet (174.36 KB)
IXGH30N60BU1
IXYS Corporation
174.36 KB
Hiperfast igbt.

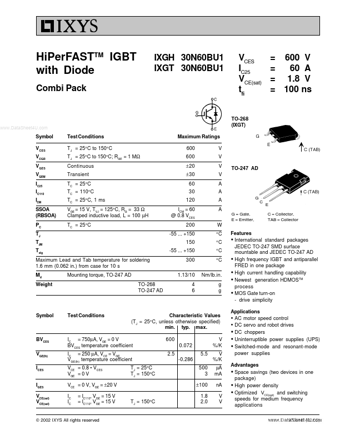

HiPerFASTTM IGBT with Diode
Combi Pack
IXGH 30N60BU1 IXGT 30N60BU1
VCES IC25 VCE(sat) tfi
TO-268 (IXGT)
= 600 V = 60 A = 1.8 V = 100 ns
www.DataSh.
