* C = Collector, TAB = Collector Maximum Lead and Tab temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Mounting torque, TO-247 AD
* International standard package
* Moderate frequency IGBT and antiparallel FRED in one package
* High current handling

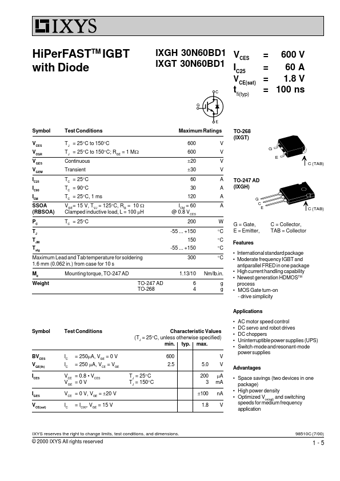

IXGH30N60BD1 Datasheet (114.39 KB)
IXGH30N60BD1
IXYS Corporation
114.39 KB
Igbt.
HiPerFASTTM IGBT with Diode
IXGH 30N60BD1 VCES IXGT 30N60BD1 I C25
VCE(sat)
tfi(typ)
= 600 V = 60 A = 1.8 V = 100 ns
Symbol VCES VCGR VGES VGEM IC.
