IXGH30N60C3, IXGA30N60C3 Datasheet - IXYS Corporation

IXGH30N60C3 GenX3 600V IGBT

GenX3TM 600V IGBTs High-Speed PT IGBTs for 40-100kHz Switching IXGA30N60C3 IXGP30N60C3 IXGH30N60C3 Obsolete Part Number Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 5Ω Clamped Inductive Load TC = 25°C 1.6mm (0.062 in.) from Case for 10s Plastic Body for 10 seconds Mounting Torque (TO-220 & T.

IXGH30N60C3 Features

* Optimized for Low Switching Losses Square RBSOA International Standard Packages Advantages High Power Density Low Gate Drive Requirement Applications High Frequency Power Inverters UPS Motor Drives SMPS PFC Circuits Battery Chargers Welding Machines Lamp Ballasts © 2011 IXYS CORPORATION, All Rights

IXGA30N60C3_IXYSCorporation.pdf

This datasheet PDF includes multiple part numbers: IXGH30N60C3, IXGA30N60C3. Please refer to the document for exact specifications by model.

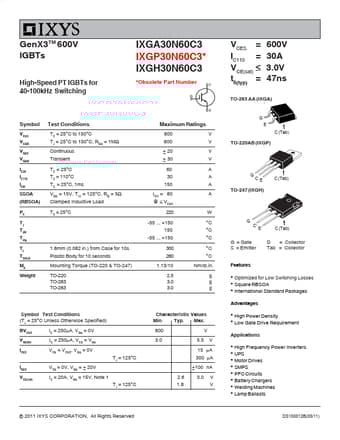

IXGH30N60C3 Datasheet Preview Page 2 IXGH30N60C3 Datasheet Preview Page 3

Datasheet Details

Part number:

IXGH30N60C3, IXGA30N60C3

Manufacturer:

IXYS Corporation

File Size:

312.49 KB

Description:

Genx3 600v igbt.

Note:

This datasheet PDF includes multiple part numbers: IXGH30N60C3, IXGA30N60C3.
Please refer to the document for exact specifications by model.
