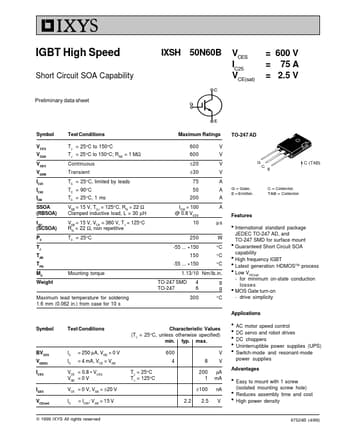

IXSH50N60B
IXYS Corporation
75.21kb
Short circuit soa capability.
TAGS
📁 Related Datasheet
IXSH10N60B2D1 - High-Speed IGBT
(IXYS)
..
High Speed IGBT with Diode
Short Circuit SOA Capability
Preliminary Data Sheet
IXSH 10N60B2D1 IXSQ 10N60B2D1
VCES = 600 V I C25.
IXSH15N120A - IGBT
(IXYS Corporation)
Preliminary Data Sheet
IXSH15N120A
IGBT
S Series - Improved SCSOA Capability
IC25 = 30 A VCES = 1200 V VCE(sat) = 4.0 V
Symbol V CES .DataShe.
IXSH15N120AU1 - IGBT
(IXYS Corporation)
IXSH15N120AU1
PRELIMINARY DATA SHEET
IGBT with Diode
S Series - Improved SCSOA Capability
C
G E Symbol
..
IC25 = 30 A VCES = 120.
IXSH15N120B - High-Voltage IGBT
(IXYS)
HIGH Voltage IGBT
IXSH 15N120B IXST 15N120B
S Series - Improved SCSOA Capability
IC25 VCES VCE(sat)
= 30 A = 1200 V = 3.4 V
Preliminary data
S.
IXSH15N120BD1 - Improved SCSOA Capability
(IXYS Corporation)
IXSH 15N120BD1 I = 30 A C25 IXST 15N120BD1 V = 1200 V CES S Series - Improved SCSOA Capability VCE(sat) = 3.4 V
HIGH Voltage IGBT with Diode
Preli.
IXSH16N60U1 - IGBT
(IXYS)
Low VCE(sat) IGBT with Diode
Short Circuit SOA Capability
Preliminary data
IXSH 16N60U1 VCES IC25 VCE(sat)typ
= 600V = 16A = 1.8V
Symbol
Test Cond.
IXSH20N60 - High Speed IGBT
(IXYS)
Not for new designs
Low VCE(sat) IGBT High Speed IGBT
IXSH/IXSM 20 N60 IXSH/IXSM 20 N60A
VCES 600 V 600 V
IC25 40 A 40 A
VCE(sat) 2.5 V 3.0 V
Sho.
IXSH20N60A - High Speed IGBT
(IXYS)
Not for new designs
Low VCE(sat) IGBT High Speed IGBT
IXSH/IXSM 20 N60 IXSH/IXSM 20 N60A
VCES 600 V 600 V
IC25 40 A 40 A
VCE(sat) 2.5 V 3.0 V
Sho.
IXSH20N60B2D1 - High Speed IGBT
(IXYS)
..
High Speed IGBT
Short Circuit SOA Capability
Preliminary Data Sheet
IXSH 20N60B2D1
VCES = 600 V I C25 = 35 A V CE(sat) = 2.5 V
.
IXSH24N60 - IGBT
(IXYS)
Advance Technical Information
HiPerFASTTM IGBT
Short Circuit SOA Capability
IXSH24N60 IXSH24N60A
VCES 600V 600V
IC90 24A 24A
VCE(sat) 2.2V 2.7V
.
