Part number:
IXTA180N085T7
Manufacturer:
IXYS Corporation
File Size:
154.17 KB
Description:
Power mosfet.
IXTA180N085T7-IXYSCorporation.pdf
Datasheet Details
Part number:
IXTA180N085T7
Manufacturer:
IXYS Corporation
File Size:
154.17 KB
Description:
Power mosfet.

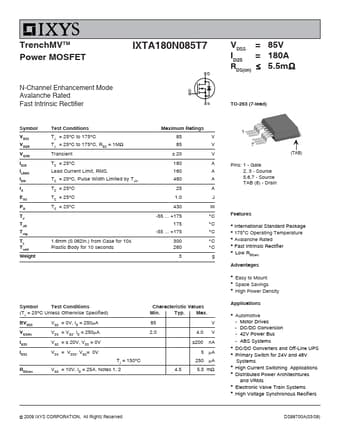

IXTA180N085T7, Power MOSFET
TrenchMVTM Power MOSFET IXTA180N085T7 N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier VDSS = ID25 = RDS(on) ≤ 85V 180A 5.5mΩ TO-263 (7-lead) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IA EAS PD TJ TJM Tstg TL Tsold Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 seconds Maximum Ratings
IXTA180N085T7 Features
* z International Standard Package z 175°C Operating Temperature z Avalanche Rated z Fast Intrinsic Rectifier z Low RDS(on) Advantages z Easy to Mount z Space Savings z High Power Density Applications z Automotive - Motor Drives - DC/DC Conversion - 42V Power Bus - ABS Systems z DC/DC Converters and O
