Part number:
IXTA180N10T
Manufacturer:
IXYS Corporation
File Size:
149.16 KB
Description:
Power mosfet.
IXTA180N10T-IXYSCorporation.pdf
Datasheet Details
Part number:
IXTA180N10T
Manufacturer:
IXYS Corporation
File Size:
149.16 KB
Description:
Power mosfet.

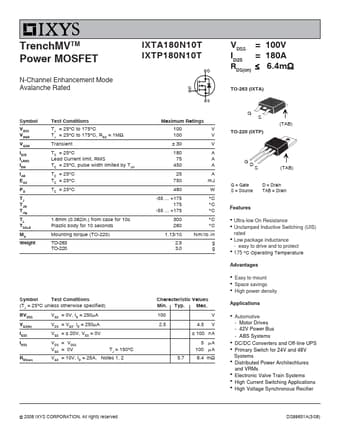

IXTA180N10T, Power MOSFET
TrenchMVTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA180N10T IXTP180N10T VDSS = 100V ID25 = 180A RDS(on) ≤ 6.4mΩ TO-263 (IXTA) Symbol VDSS VDGR VGSM ID25 ILRMS IDM IAR EAS PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Transient TC = 25°C Lead Current limit, RMS TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.062in.) from case for 10s Plastic body for 10 seconds Mounting torque (TO-220) TO-263
IXTA180N10T Features
* z Ultra-low On Resistance z Unclamped Inductive Switching (UIS) rated z Low package inductance - easy to drive and to protect z 175 °C Operating Temperature Advantages z Easy to mount z Space savings z High power density Applications z Automotive - Motor Drives - 42V Power Bus - ABS Systems z DC/DC
