* l l l l l International standard packages Low RDS (on) HDMOSTM process Rugged polysilicon gate cell structure Low package inductance (< 5 nH) - easy to drive and to protect Fast switching times Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 9
IXTM6N90 Datasheet (104.91 KB)
IXTM6N90
IXYS Corporation
104.91 KB
Standard power mosfet.

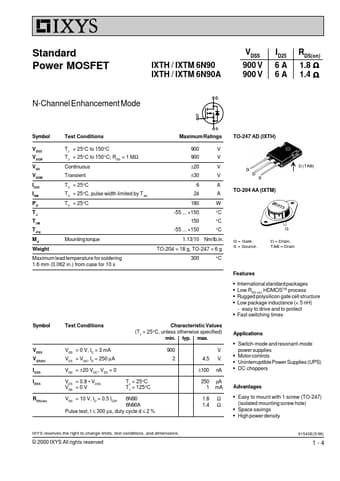

Standard Power MOSFET VDSS IXTH / IXTM 6N90 IXTH / IXTM 6N90A 900 V 900 V ID25 6A 6A RDS(on) 1.8 Ω 1.4 Ω N-Channel Enhancement Mode Symbol VDSS V.
