IXFT50N60X Power MOSFET

X-Class HiPerFETTM Power MOSFET Preliminary Technical Information IXFT50N60X IXFQ50N60X IXFH50N60X VDSS = ID25 = RDS(on) 600V 50A 73m N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode TO-268 (IXFT) G S D (Tab) TO-3P (IXFQ) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  .

IXFT50N60X Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFT50N60X Datasheet (185.51 KB)

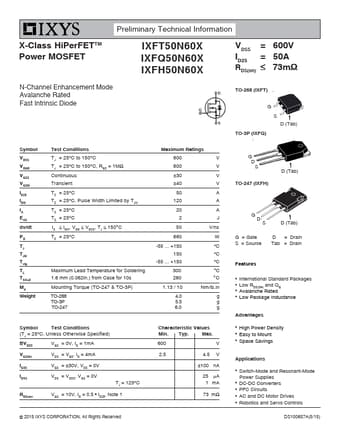

IXFT50N60X Datasheet Preview — Preview of IXFT50N60X PDF

Datasheet Details

Part number:

IXFT50N60X

Manufacturer:

IXYS

File Size:

185.51 KB

Description:

Power mosfet.
