IXSP20N60B2, IXSP20N60B2D1 Datasheet - IXYS

IXSP20N60B2 High Speed IGBT

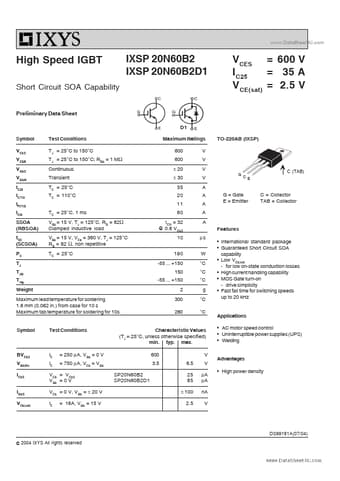

www.DataSheet4U.com High Speed IGBT Short Circuit SOA Capability Preliminary Data Sheet IXSP 20N60B2 IXSP 20N60B2D1 VCES = 600 V I C25 = 35 A V CE(sat) = 2.5 V D1 Symbol VCES VCGR VGES VGEM IC25 IC110 IF(110) ICM SSOA (RBSOA) tSC (SCSOA) PC TJ TJM Tstg Weight Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Maximum tab temperature for soldering for 10s Symbol Test Conditions TC = 25°C, 1 ms VGE = 15 V, TJ = 125°C, RG = 82Ω Clamped inductive load VGE = 15 V, VCE = .

IXSP20N60B2 Features

* µs W °C °C °C g °C °C

* International standard package

* Guaranteed Short Circuit SOA capability

* Low VCE(sat) - for low on-state conduction losses

* High current handling capability

* MOS Gate turn-on - drive simplicity

* Fast fall time for switching

IXSP20N60B2D1_IXYS.pdf

IXSP20N60B2 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXSP20N60B2, IXSP20N60B2D1. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXSP20N60B2, IXSP20N60B2D1

Manufacturer:

IXYS

File Size:

597.21 KB

Description:

High speed igbt.

Note:

This datasheet PDF includes multiple part numbers: IXSP20N60B2, IXSP20N60B2D1.
Please refer to the document for exact specifications by model.
