IXSP24N60B, High Speed IGBT

High Speed IGBT Short Circuit SOA Capability Preliminary Data Sheet IXSP 24N60B VCES IC25 V CE(sat) = 600 V = 48 A = 2.5 V tfi typ = 170 ns Symbo.

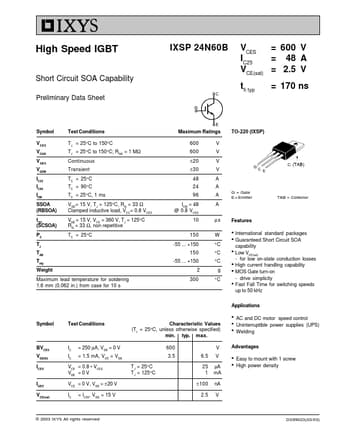

datasheet Preview Page 1 from Datasheet4u.com

IXSP24N60B-IXYS.pdf

IXSP24N60B Datasheet Preview — Preview of IXSP24N60B PDF

Datasheet Details

Part number:

IXSP24N60B

Manufacturer:

IXYS

File Size:

67.42 KB

Description:

High Speed IGBT

Features

* z International standard packages z Guaranteed Short Circuit SOA capability z Low VCE(sat) - for low on-state conduction losses z High current handling capability z MOS Gate turn-on - drive simplicity z Fast Fall Time for switching speeds up to 50 kHz Symbol BVCES VGE(th) ICES I GES VCE(sat) Test

Applications

* z AC and DC motor speed control z Uninterruptible power supplies (UPS) z Welding Advantages z Easy to mount with 1 screw z High power density © 2003 IXYS All rights reserved DS99023(03/03) IXSP 24N60B Symbol gfs Cies C oes Cres Q g Qge Q gc t d(on) tri td(off) tfi Eoff td(on) tri Eon td(off) tfi
