IXTA24N65X2 Power MOSFET

X2-Class Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTA24N65X2 IXTP24N65X2 IXTH24N65X2 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 650 V 650 V 30 V 40 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 24 48 12 600 15 390 -55 +150 150 -55 +150 A A A mJ V/ns W .

IXTA24N65X2 Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXTA24N65X2 Datasheet (294.00 KB)

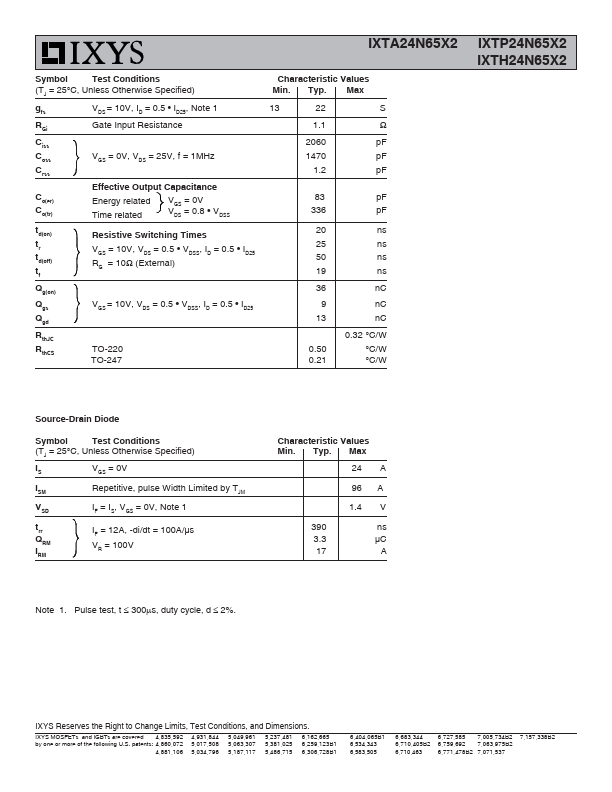

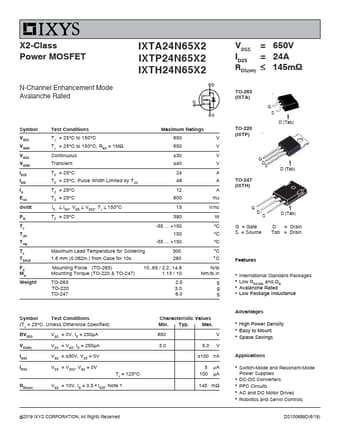

IXTA24N65X2 Datasheet Preview — Preview of IXTA24N65X2 PDF

Datasheet Details

Part number:

IXTA24N65X2

Manufacturer:

IXYS

File Size:

294.00 KB

Description:

Power mosfet.
