* z Designed for linear operation z International standard packages z Unclamped Inductive Switching (UIS) rated. z Molding epoxies meet UL 94 V-0 flammability classification z Integrated gate resistor for easy paralleling z Guaranteed FBSOA at 75°C Applications z Solid state circuit breakers z Soft st

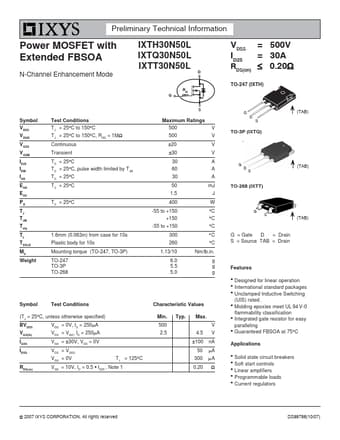

IXTH30N50L Datasheet (144.95 KB)
IXTH30N50L
IXYS
144.95 KB
Power mosfet.
Preliminary Technical Information
Power MOSFET with Extended FBSOA
N-Channel Enhancement Mode
IXTH30N50L IXTQ30N50L IXTT30N50L
D O DD
Symbol VDSS V.
