IXTK240N075L2 Power MOSFET

Advance Technical Information LinearL2TM Power MOSFET w/Extended FBSOA N-Channel Enhancement Mode Avalanche Rated IXTK240N075L2 IXTX240N075L2 VDSS = 75V ID25 = 240A RDS(on) < 7m Symbol VDSS VDGR VGSS VGSM ID25 IL(RMS) IDM IA EAS PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 75 V 75 V 20 V 30 V TC = 25C (Chip Capability) External Lead Current Limit TC = 25C, pulse width limited by TJM .

IXTK240N075L2 Features

* Designed for linear operation

* International standard packages

* Avalanche rated

* Guaranteed FBSOA at 75C Advantages

* Easy to mount

* Space savings

* High power density Applications

* Solid state circuit breakers

* Soft start controls

* Linear amplifiers

IXTK240N075L2-IXYS.pdf

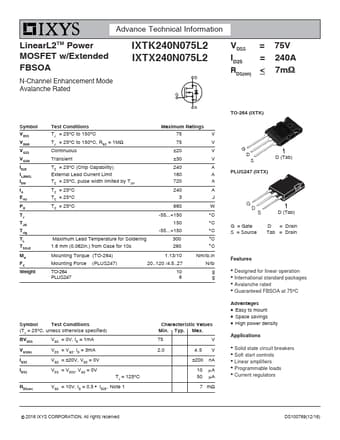

IXTK240N075L2 Datasheet Preview — Preview of IXTK240N075L2 PDF

Datasheet Details

Part number:

IXTK240N075L2

Manufacturer:

IXYS

File Size:

205.31 KB

Description:

Power mosfet.
