IXTK120N65X2 Power MOSFET

Preliminary Technical Information X2-Class Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXTK120N65X2 IXTX120N65X2 VDSS = ID25 = RDS(on)  650V 120A 23m TO-264P (IXTK) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD dv/dt TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions Maximum Ratings TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient 650 V 650 V  30 V  40 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C TC = 25C IS  IDM, VDD  VD.

IXTK120N65X2 Features

* International Standard Packages

* Low QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

* AC and

IXTK120N65X2 Datasheet (196.42 KB)

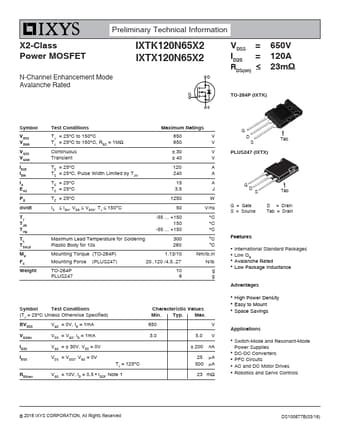

IXTK120N65X2 Datasheet Preview — Preview of IXTK120N65X2 PDF

Datasheet Details

Part number:

IXTK120N65X2

Manufacturer:

IXYS

File Size:

196.42 KB

Description:

Power mosfet.
