IXTK110N20L2 Power MOSFET

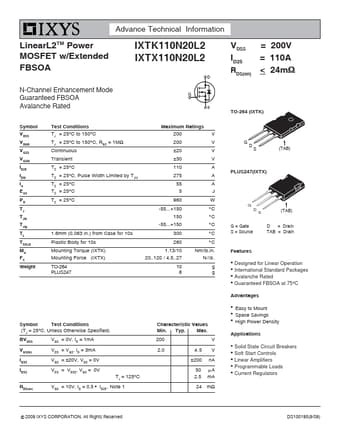

Advance Technical Information LinearL2TM Power MOSFET w/Extended FBSOA IXTK110N20L2 IXTX110N20L2 VDSS ID25 RDS(on) = 200V = 110A < 24mΩ N-Channel Enhancement Mode Guaranteed FBSOA Avalanche Rated TO-264 (IXTK) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD TJ TJM Tstg TL TSOLD Md FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C TC = 25°C 1.6mm (0.063 in.) from Case for 10s Pl.

IXTK110N20L2 Features

* z Designed for Linear Operation z International Standard Packages z Avalanche Rated z Guaranteed FBSOA at 75°C Advantages z Easy to Mount z Space Savings z High Power Density Applications z Solid State Circuit Breakers z Soft Start Controls z Linear Amplifiers z Programmable Loads z Current Regulato
