* l International standard packages l Unclamped Inductive Switching (UIS) rated l Low package inductance - easy to drive and to protect Advantages l Easy to mount l Space savings l High power density © 2006 IXYS All rights reserved DS99415E(04/06) Symbol gfs Ciss Coss Crss td(on) tr td(off) tf Qg(o
IXTQ30N50P Datasheet (327.56 KB)
IXTQ30N50P
IXYS
327.56 KB
Polarhv power mosfet.

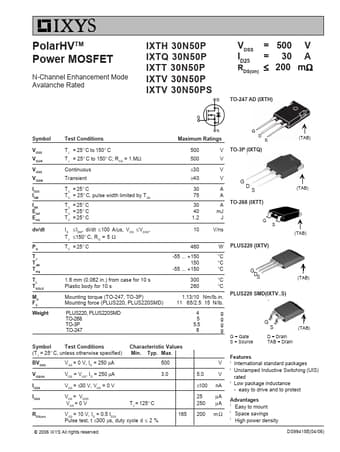

PolarHVTM Power MOSFET
N-Channel Enhancement Mode Avalanche Rated
IXTH 30N50P IXTQ 30N50P IXTT 30N50P IXTV 30N50P IXTV 30N50PS
V= DSS
ID25 = ≤ RDS(o.
