IXTQ60N20T Datasheet - IXYS

IXTQ60N20T Power MOSFET

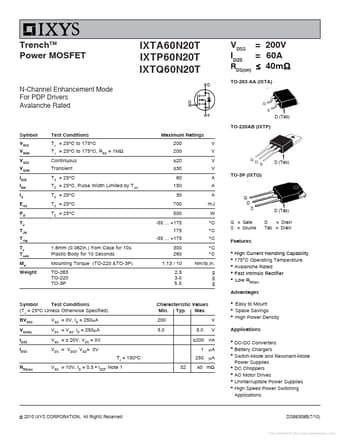

TrenchTM Power MOSFET IXTA60N20T IXTP60N20T IXTQ60N20T VDSS ID25 RDS(on) = 200V = 60A ≤ 40mΩ TO-263 AA (IXTA) N-Channel Enhancement Mode For PDP Drivers Avalanche Rated G S D (Tab) TO-220AB (IXTP) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS PD TJ TJM Tstg TL Tsold Md Weight 1.6mm (0.062in.) from Case for 10s Plastic Body for 10 Seconds Mounting Torque (TO-220 &TO-3P) TO-263 TO-220 TO-3P Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25.

IXTQ60N20T Features

* z z z z z High Current Handling Capability 175°C Operating Temperature Avalanche Rated Fast Intrinsic Rectifier Low RDS(on) Advantages Symbol Test Conditions (TJ = 25°C Unless Otherwise Specified) BVDSS VGS(th) IGSS IDSS RDS(on) VGS = 0V, ID = 250μA VDS = VGS, ID = 250μA VGS = ± 20V, VDS = 0V VDS
