IXTR20P50P Power MOSFET

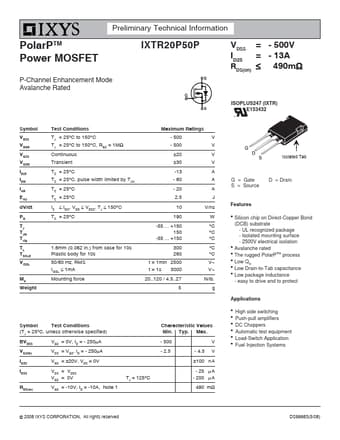

Preliminary Technical Information PolarPTM Power MOSFET P-Channel Enhancement Mode Avalanche Rated IXTR20P50P VDSS = ID25 = ≤RDS(on) - 500V - 13A 490mΩ ISOPLUS247 (IXTR) E153432 Symbol VDSS VDGR VGSS VGSM ID25 IDM IAR EAS dV/dt PD TJ TJM Tstg TL TSOLD VISOL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062 in.) from case .

IXTR20P50P Features

* z Silicon chip on Direct-Copper Bond (DCB) substrate - UL recognized package - Isolated mounting surface - 2500V electrical isolation z Avalanche rated z The rugged PolarPTM process z Low Q G z Low Drain-to-Tab capacitance z Low package inductance - easy to drive and to protect Applications z High
