IXTR210P10T Datasheet - IXYS

IXTR210P10T - Power MOSFET

Preliminary Technical Information TrenchPTM Power MOSFET IXTR210P10T VDSS = ID25 = ≤RDS(on) -100V -195A 8mΩ P-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Rectifier ISOPLUS247 E153432 Symbol VDSS VDGR VGSS VGSM ID25 ILRMS IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD VISOL FC Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C (Chip Capability) Lead Current Limit, RMS TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ I

IXTR210P10T Features

* z Silicon Chip on Direct-Copper Bond (DCB) Substrate z Isolated Mounting Surface z 2500V~ Electrical Isolation z Avalanche Rated z Extended FBSOA z Fast Intrinsic Rectifier z Low RDS(ON) and QG Advantages z Easy to Mount z Space Savings z High Power Density Applications z High-Side Switching z Push

IXTR210P10T-IXYS.pdf

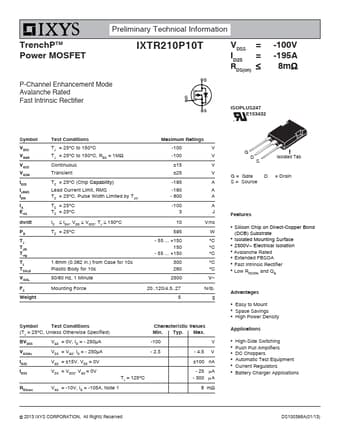

Preview of IXTR210P10T PDF
IXTR210P10T Datasheet Preview Page 2 IXTR210P10T Datasheet Preview Page 3

Datasheet Details

Part number:

IXTR210P10T

Manufacturer:

IXYS

File Size:

192.53 KB

Description:

Power mosfet.

📁 Related Datasheet

IXTR200N10P IXTR20P50P IXTR102N65X2 IXTR120P20T IXTR140P10T IXTR16P60P

📌 All Tags

IXTR210P10T Power MOSFET IXYS
