* Optimized for 20-60kHz Switching
* Square RBSOA
* Avalanche Rated
* Short Circuit Capability
* International Standard Packages Advantages
* High Power Density
* Extremely Rugged
* Low Gate Drive Requirement Applications
* Power Inverters
* UPS
* Motor Dr

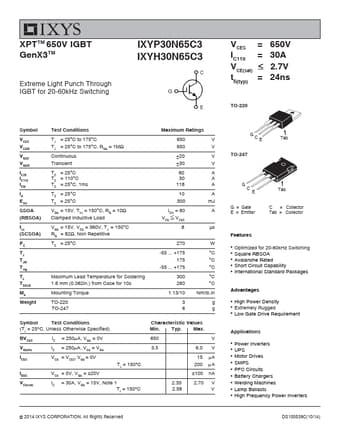

IXYH30N65C3 Datasheet (194.11 KB)
IXYH30N65C3
IXYS
194.11 KB
Extreme light punch through igbt.
XPTTM 650V IGBT GenX3TM
Extreme Light Punch Through IGBT for 20-60kHz Switching
IXYP30N65C3 IXYH30N65C3
VCES = 650V
IC110 = 30A
V CE(sat)
2.
