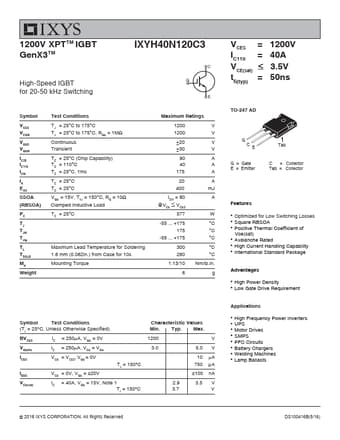

IXYH40N120C3 High-Speed IGBT

1200V XPTTM IGBT GenX3TM IXYH40N120C3 High-Speed IGBT for 20-50 kHz Switching Symbol VCES VCGR VGES VGEM IC25 IC110 ICM IA EAS SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C (Chip Capability) TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 10 Clamped Inductive Load TC = 25°C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque Maxi.

IXYH40N120C3 Features

* Optimized for Low Switching Losses

* Square RBSOA

* Positive Thermal Coefficient of Vce(sat)

* Avalanche Rated

* High Current Handling Capability

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* High Fr

IXYH40N120C3 Datasheet (253.19 KB)
