IXYH40N120C4 - High Speed IGBT

1200V XPTTM GenX4TM IGBT High Speed IGBT for 20-50kHz Switching Advance Technical Information IXYH40N120C4 VCES = 1200V IC110 = 40A V CE(sat)  2.50V tfi(typ) = 80ns TO-247 (IXYH) Symbol VCES VCGR VGES VGEM IC25 IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 1200 V 1200 V ±20 V ±30 V TC = 25°C TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 150°C, RG = 5 Clamped In

IXYH40N120C4 Features

* Optimized for Low Switching Losses

* Positive Thermal Coefficient of Vce(sat)

* International Standard Package Advantages

* High Power Density

* Low Gate Drive Requirement Applications

* Power Inverters

* UPS

* Motor Drives

* SMPS

* PFC Circuits

* Batter

IXYH40N120C4-IXYS.pdf

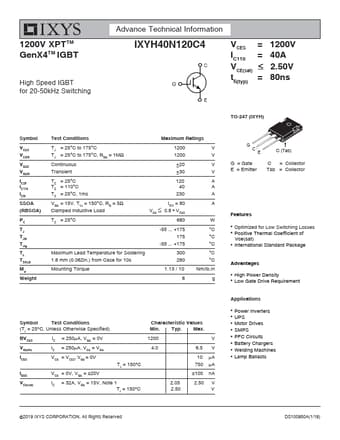

Preview of IXYH40N120C4 PDF
