IXYN110N120A4 Datasheet - IXYS

IXYN110N120A4 - Ultra Low-Vsat PT IGBT

1200V XPTTM IGBT GenX4TM Ultra Low-Vsat PT IGBT for up to 5kHz Switching IXYN110N120A4 Symbol VCES VCGR VGES VGEM IC25 ILRMS IC110 ICM SSOA (RBSOA) PC TJ TJM Tstg VISOL Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient TC = 25°C (Chip Capability) Terminal Current Limit TC = 110°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 2 Clamped Inductive Load TC = 25°C 50/60Hz IISOL 1mA t = 1min t = 1s Mounting Torque Terminal Connection Torque Maximum

.

IXYN110N120A4 Features

* miniBLOC, with Aluminium Nitride Isolation

* International Standard Package

* Isolation Voltage 2500V~

* Optimized for Low Conduction Losses

* Positive Thermal Coefficient of Vce(sat)

* High Current Handling Capability Advantages

* High Power Density

* Low Gate Driv

IXYN110N120A4-IXYS.pdf

Preview of IXYN110N120A4 PDF

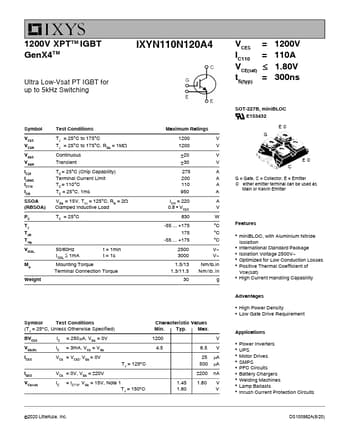

IXYN110N120A4 Datasheet Preview Page 2 IXYN110N120A4 Datasheet Preview Page 3
