IXYN100N120B3H1 Datasheet, Igbt, IXYS

IXYN100N120B3H1 Features

  • Igbt z Optimized for 5-30kHZ Switching z Square RBSOA z 2500V~ Isolation Voltage z Anti-Parallel Ultra Fast Diode z Positive Thermal Coefficient of Vce(sat) z Avalanche Rated z High Current

PDF File Details

Part number:

IXYN100N120B3H1

Manufacturer:

IXYS

File Size:

180.76kb

Download:

📄 Datasheet

Description:

Igbt.

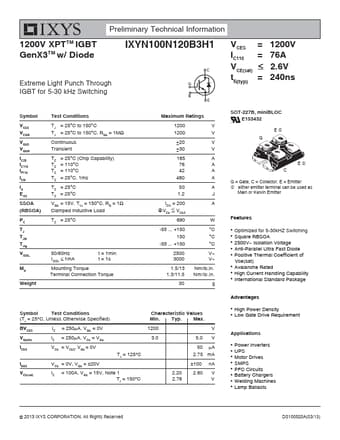

Datasheet Preview: IXYN100N120B3H1 📥 Download PDF (180.76kb)
Page 2 of IXYN100N120B3H1 Page 3 of IXYN100N120B3H1

IXYN100N120B3H1 Application

  • Applications z Power Inverters z UPS z Motor Drives z SMPS z PFC Circuits z Battery Chargers z Welding Machines z Lamp Ballasts © 2013 IXYS CORPORA
