IXYP20N120C4, IXYA20N120C4HV IGBT

IXYS

Description

1200V XPTTM GenX4TM IGBT High-Speed IGBT for 20-50 kHz Switching IXYA20N120C4HV IXYP20N120C4 VCES = 1200V IC110 = 20A VCE(sat)  2.5V tfi(typ) = .

📥 Download Datasheet

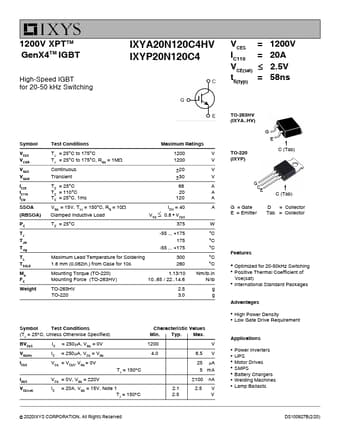

IXYP20N120C4 Datasheet Preview — This datasheet PDF includes multiple part numbers: IXYP20N120C4, IXYA20N120C4HV. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: IXYP20N120C4, IXYA20N120C4HV
Manufacturer: IXYS
File Size: 2.26 MB
Datasheet: IXYA20N120C4HV-IXYS.pdf
Description: IGBT
Note: This datasheet PDF includes multiple part numbers: IXYP20N120C4, IXYA20N120C4HV.
Please refer to the document for exact specifications by model.

Features

* Optimized for 20-50kHz Switching
* Positive Thermal Coefficient of Vce(sat)
* International Standard Packages Advantages
* High Power Density

Applications

* Power Inverters
* UPS
* Motor Drives
* SMPS
* Battery Chargers
* Welding Machines
* Lamp Ballasts © 2020IXYS CORPORATION, All Rights Reserved DS100927B(2/20) Symbol Test Conditions (TJ = 25°C Unless Otherwise Specified) gfs IC = 20A, VCE = 10V, Note 1 Cies Coes Cr
