2SA1104, POWER TRANSISTOR

isc Silicon PNP Power Transistor 2SA1104 .
Collector-Emitter Breakdown Voltage- V(BR)CEO= -120V(Min). Good Linearity of hFE. High Power Dissipation. Minimum Lot-to-Lot variatio.

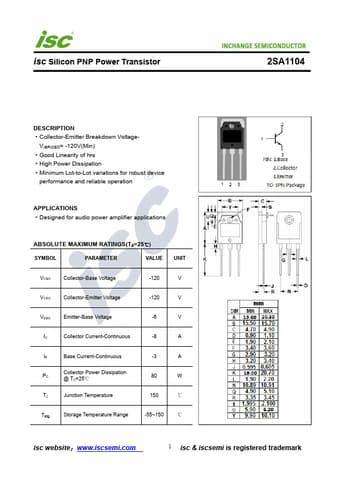

datasheet Preview Page 1 from Datasheet4u.com

2SA1104_InchangeSemiconductor.pdf

2SA1104 Datasheet Preview — Preview of 2SA1104 PDF

Datasheet Details

Part number:

2SA1104

Manufacturer:

Inchange Semiconductor

File Size:

224.26 KB

Description:

POWER TRANSISTOR

Applications

* Designed for audio power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -120 V VCEO Collector-Emitter Voltage -120 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -8 A IB Base Current-Contin
