2SD2165 - Silicon NPN Power Transistor

The 2SD2165 by Inchange Semiconductor is a Silicon NPN Power Transistor. Below is the official datasheet preview.

📥 Download Datasheet

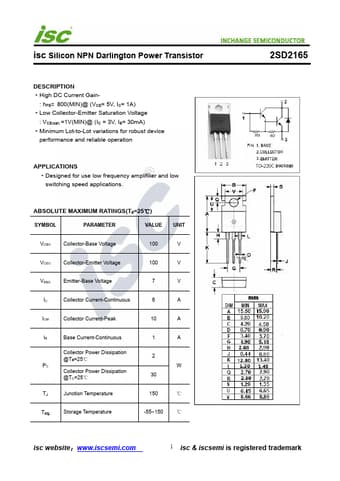

Official preview page of the 2SD2165 Silicon NPN Power Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 2SD2165
Manufacturer Inchange Semiconductor
File Size 200.23 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet 2SD2165-InchangeSemiconductor.pdf
Additional preview pages of the 2SD2165 datasheet.

2SD2165 Product details

Description

High DC Current Gain- : hFE= 800(MIN)@ (VCE= 5V, IC= 1A) Low Collector-Emitter Saturation Voltage : VCE(sat) =1V(MIN)@ (IC = 3V, IB= 30mA) Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for use low frequency amplifilier and low switching speed applications.
