BD950F, BD952F, Silicon PNP Power Transistor

isc Silicon PNP Power Transistor BD950F/952F/954F/956F .
DC Current Gain- : hFE= 40(Min)@ IC= -500mA. Complement to Type BD949F/951F/953F/955F. Minimum Lot-to-Lot variations for robust device pe.

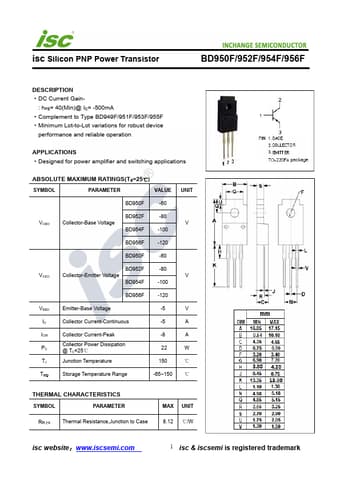

datasheet Preview Page 1 from Datasheet4u.com

BD952F_InchangeSemiconductor.pdf

BD950F Datasheet Preview — This datasheet PDF includes multiple part numbers: BD950F, BD952F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD950F, BD952F

Manufacturer:

Inchange Semiconductor

File Size:

214.25 KB

Description:

Silicon PNP Power Transistor

Note:

This datasheet PDF includes multiple part numbers: BD950F, BD952F.
Please refer to the document for exact specifications by model.

Applications

* Designed for power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD950F -60 BD952F -80 VCBO Collector-Base Voltage V BD954F -100 BD956F -120 BD950F -60 BD952F -80 VCEO Collector-Emitter Voltage V BD954F -100 BD956F -
