BD951F, BD949F Datasheet - Inchange Semiconductor

BD951F, BD949F, Silicon NPN Power Transistor

isc Silicon NPN Power Transistor BD949F/951F/953F/955F .
DC Current Gain- : hFE= 40(Min)@ IC= 500mA. Complement to Type BD950F/952F/954F/956F. Minimum Lot-to-Lot variations for robust device per.

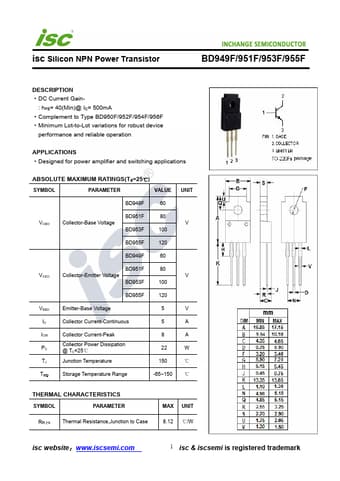

datasheet Preview Page 1 from Datasheet4u.com

BD949F-InchangeSemiconductor.pdf

BD951F Datasheet Preview — This datasheet PDF includes multiple part numbers: BD951F, BD949F. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BD951F, BD949F

Manufacturer:

Inchange Semiconductor

File Size:

213.70 KB

Description:

Silicon NPN Power Transistor

Note:

This datasheet PDF includes multiple part numbers: BD951F, BD949F.
Please refer to the document for exact specifications by model.

Applications

* Designed for power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD949F 60 BD951F 80 VCBO Collector-Base Voltage V BD953F 100 BD955F 120 BD949F 60 BD951F 80 VCEO Collector-Emitter Voltage V BD953F 100 BD955F 120 VEB
