BD953F, BD949F - Silicon NPN Power Transistor

BD953F Description

isc Silicon NPN Power Transistor BD949F/951F/953F/955F .
DC Current Gain- : hFE= 40(Min)@ IC= 500mA. Complement to Type BD950F/952F/954F/956F. Minimum Lot-to-Lot variations for robust device per.

BD953F Applications

* Designed for power amplifier and switching applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT BD949F 60 BD951F 80 VCBO Collector-Base Voltage V BD953F 100 BD955F 120 BD949F 60 BD951F 80 VCEO Collector-Emitter Voltage V BD953F 100 BD955F 120 VEB

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BD953F, BD949F. Please refer to the document for exact specifications by model.

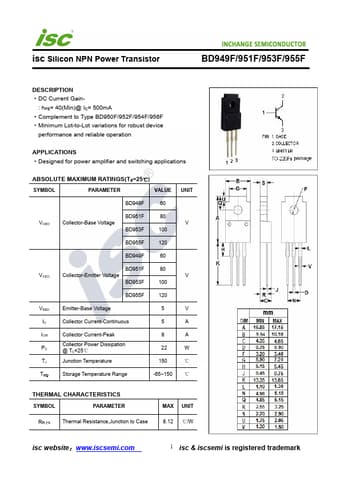

datasheet Preview Page 2

Datasheet Details

Part number
BD953F, BD949F
Manufacturer
Inchange Semiconductor
File Size
213.70 KB
Datasheet
BD949F-InchangeSemiconductor.pdf
Description
Silicon NPN Power Transistor
Note
This datasheet PDF includes multiple part numbers: BD953F, BD949F.
Please refer to the document for exact specifications by model.
