IPA180N10N3G - Power-Transistor

Infineon Technologies

📥 Download Datasheet

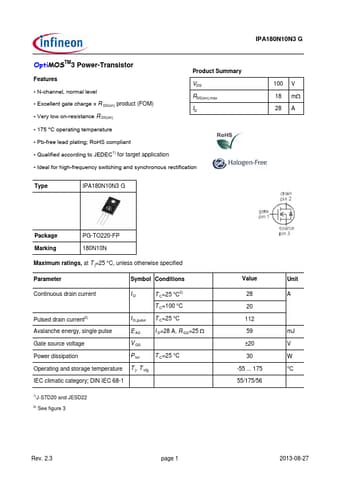

IPA180N10N3G Datasheet Preview — Preview of IPA180N10N3G PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPA180N10N3G
Manufacturer: Infineon ↗ Technologies
File Size: 333.79 KB
Datasheet: IPA180N10N3G_InfineonTechnologies.pdf
Description: Power-Transistor

IPA180N10N3G Product details

Features

N-channel, normal level.
Excellent gate charge x R DS(on) product (FOM).
Very low on-resistance R DS(on) Product Summary VDS RDS(on),max ID.
175 °C operating temperature.
Pb-free lead plating; RoHS compliant.
Qualified according to JEDEC1) for target application.
Ideal for high-frequency switching and synchronous rectification Type IPA180N10N3 G 100 V 18 mW 28 A Package Marking PG-TO220-FP 180N10N Maximum ratings, at T j=2.
