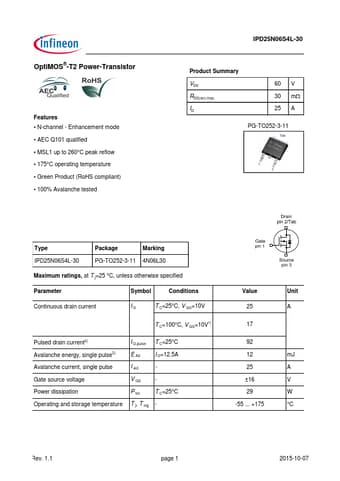

IPD25N06S4L-30 Datasheet Preview — Preview of IPD25N06S4L-30 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPD25N06S4L-30
Manufacturer: Infineon ↗ Technologies
File Size: 235.84 KB
Datasheet: IPD25N06S4L-30-InfineonTechnologies.pdf
Description: Power-Transistor

IPD25N06S4L-30 Product details

Features

N-channel - Enhancement mode.
AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green Product (RoHS compliant).
100% Avalanche tested IPD25N06S4L-30 Product Summary VDS RDS(on),max ID 60 V 30 mW 25 A PG-TO252-3-11 Type IPD25N06S4L-30 Package Marking PG-TO252-3-11 4N06L30 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current I D T C=25°C, V GS=.
