IPD220N06L3G, Power-Transistor

Type OptiMOS(TM)3 Power-Transistor .

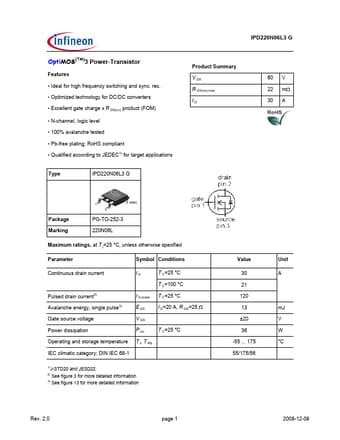

datasheet Preview Page 1 from Datasheet4u.com

IPD220N06L3G-InfineonTechnologies.pdf

IPD220N06L3G Datasheet Preview — Preview of IPD220N06L3G PDF

Datasheet Details

Part number:

IPD220N06L3G

Manufacturer:

Infineon ↗ Technologies

File Size:

209.85 KB

Description:

Power-Transistor

Features

* Ideal for high frequency switching and sync. rec.
* Optimized technology for DC/DC converters
* Excellent gate charge x R DS(on) product (FOM)
* N-channel, logic level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified acco

Applications

* Type IPD220N06L3 G IPD220N06L3 G Product Summary V DS R DS(on),max ID 60 V 22 mΩ 30 A Package Marking PG-TO-252-3 220N06L Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current I D T C=25 °C T C=100 °C Pulsed drain current2) I D,
