IPD25N06S2-40 - Power-Transistor

Infineon Technologies

📥 Download Datasheet

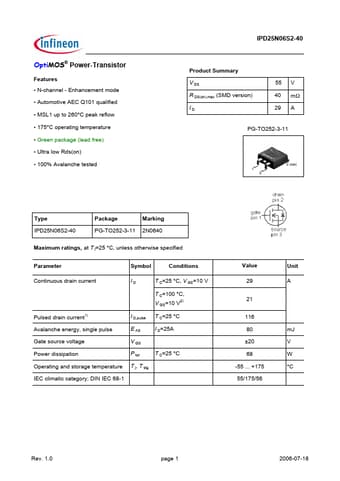

IPD25N06S2-40 Datasheet Preview — Preview of IPD25N06S2-40 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPD25N06S2-40
Manufacturer: Infineon ↗ Technologies
File Size: 146.05 KB
Datasheet: IPD25N06S2-40-InfineonTechnologies.pdf
Description: Power-Transistor

IPD25N06S2-40 Product details

Description

and charts stated herein.

Features

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPD25N06S2-40 Product Summary V DS R DS(on),max (SMD version) ID 55 V 40 mΩ 29 A PG-TO252-3-11 Type IPD25N06S2-40 Package Marking PG-TO252-3-11 2N0640 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions.
