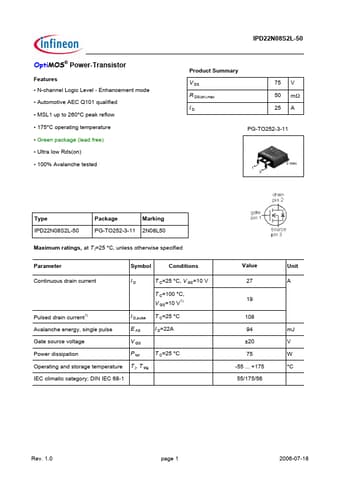

IPD22N08S2L-50 Datasheet Preview — Preview of IPD22N08S2L-50 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: IPD22N08S2L-50
Manufacturer: Infineon ↗ Technologies
File Size: 147.35 KB
Datasheet: IPD22N08S2L-50-InfineonTechnologies.pdf
Description: Power-Transistor

IPD22N08S2L-50 Product details

Description

and charts stated herein.

Features

N-channel Logic Level - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
Green package (lead free).
Ultra low Rds(on).
100% Avalanche tested IPD22N08S2L-50 Product Summary V DS R DS(on),max ID 75 V 50 mΩ 25 A PG-TO252-3-11 Type IPD22N08S2L-50 Package Marking PG-TO252-3-11 2N08L50 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Condition.
