Part number:
BGA5M1BN6
Manufacturer:
File Size:
287.53 KB
Description:
18db high gain low noise amplifier.

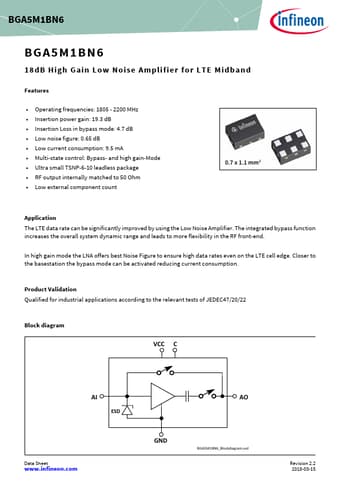

BGA5M1BN6 Datasheet (287.53 KB)
* Operating frequencies: 1805 - 2200 MHz
* Insertion power gain: 19.3 dB
* Insertion Loss in bypass mode: 4.7 dB
* Low noise figure: 0.65 dB
* Low current consumption: 9.5 mA
* Multi-state control: Bypass- and high gain-Mode
* Ultra small TSNP-
BGA5M1BN6 Datasheet (287.53 KB)
BGA5M1BN6
287.53 KB
18db high gain low noise amplifier.
