IPB032N10N5, 100V MOSFET

IPB032N10N5 MOSFET OptiMOSª 5 Power-Transistor, 100 V .

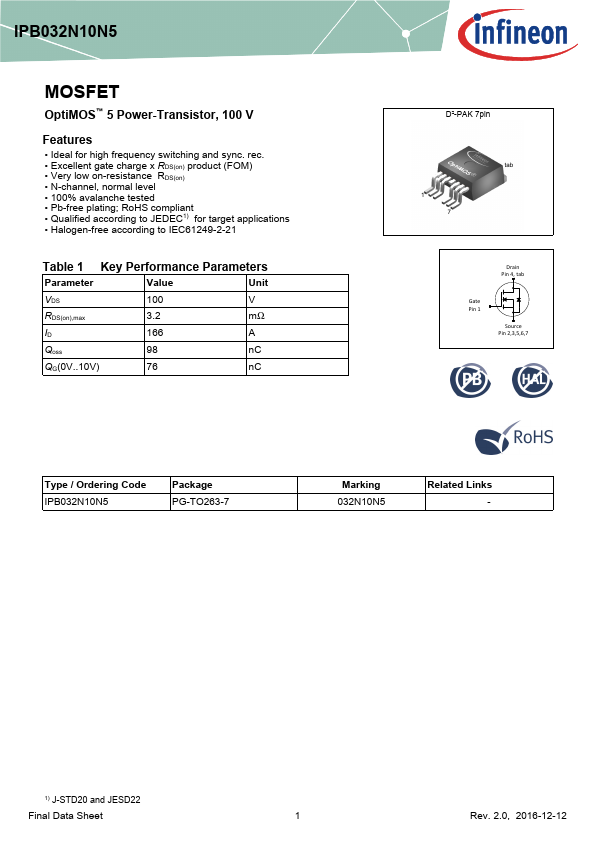

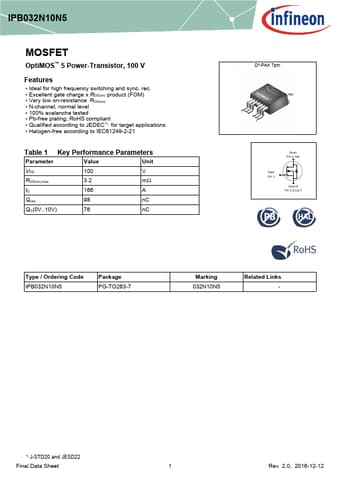

datasheet Preview Page 1 from Datasheet4u.com

IPB032N10N5-Infineon.pdf

IPB032N10N5 Datasheet Preview — Preview of IPB032N10N5 PDF

Datasheet Details

Part number:

IPB032N10N5

Manufacturer:

Infineon ↗

File Size:

1.07 MB

Description:

100V MOSFET

Features

* Ideal for high frequency switching and sync. rec.
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Qualified according to J

Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 3.2 mΩ ID 166 A Qoss 98 nC QG(0V. .10V) 76 nC D²-PAK 7pin tab 1 7 Drain Pin 4, tab Gate Pin 1 Source Pin 2,3,5,6,7 Type / Ordering Code IPB032N10
