IPB034N06N3G, IPB034N06N3, 60V MOSFET

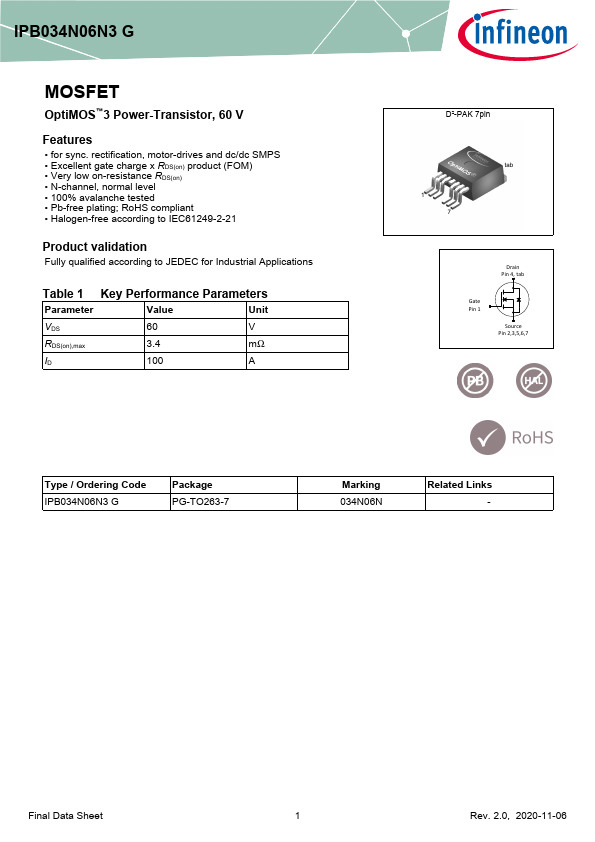

IPB034N06N3 G MOSFET OptiMOSª3 Power-Transistor, 60 V .

datasheet Preview Page 1 from Datasheet4u.com

IPB034N06N3-Infineon.pdf

IPB034N06N3G Datasheet Preview — This datasheet PDF includes multiple part numbers: IPB034N06N3G, IPB034N06N3. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IPB034N06N3G, IPB034N06N3

Manufacturer:

Infineon ↗

File Size:

965.59 KB

Description:

60V MOSFET

Note:

This datasheet PDF includes multiple part numbers: IPB034N06N3G, IPB034N06N3.
Please refer to the document for exact specifications by model.

Features

* for sync. rectification, motor-drives and dc/dc SMPS
* Excellent gate charge x RDS(on) product (FOM)
* Very low on-resistance RDS(on)
* N-channel, normal level
* 100% avalanche tested
* Pb-free plating; RoHS compliant
* Halogen-free according

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 60 V RDS(on),max 3.4 mΩ ID 100 A D²-PAK 7pin tab 1 7 Drain Pin 4, tab Gate Pin 1 Source Pin 2,3,5,6,7 Type / Ordering Code IPB034N06N3 G Package PG-TO263-7 Marking 034N06N Related Links - Final Data Sheet 1 Rev.
