IPD12CN10NG, IPD12CN10N - Power-Transistor

IPD12CN10NG Description

IPB12CN10N G IPD12CN10N G IPI12CN10N G IPP12CN10N G OptiMOS™2 Power-Transistor .

IPD12CN10NG Features

* N-channel, normal level
* Excellent gate charge x R DS(on) product (FOM)
* Very low on-resistance R DS(on) Product Summary VDS RDS(on),max (TO252) ID 100 V 12.4 mW 67 A
* 175 °C operating temperature
* Pb-free lead plating; RoHS compliant
* Quali

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IPD12CN10NG, IPD12CN10N. Please refer to the document for exact specifications by model.

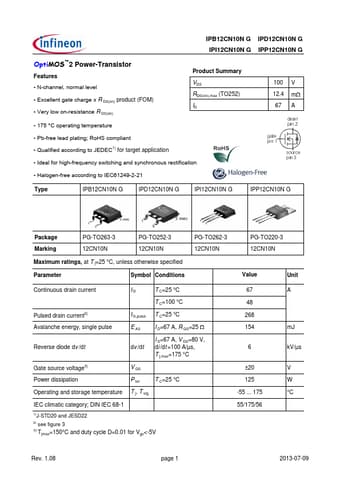

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IPD12CN10NG, IPD12CN10N
Manufacturer
Infineon ↗
File Size
858.83 KB
Datasheet
IPD12CN10N-Infineon.pdf
Description
Power-Transistor
Note
This datasheet PDF includes multiple part numbers: IPD12CN10NG, IPD12CN10N.
Please refer to the document for exact specifications by model.
