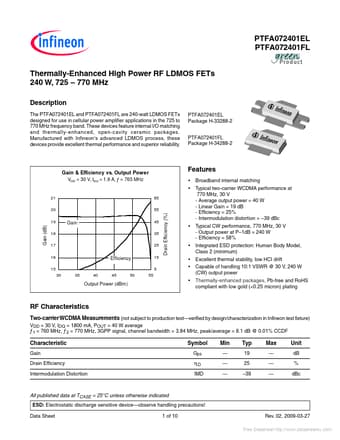

PTFA072401EL Datasheet Preview — Preview of PTFA072401EL PDF

Datasheet Details

Part number: PTFA072401EL
Manufacturer: Infineon ↗
File Size: 345.98 KB
Datasheet: PTFA072401EL_Infineon.pdf
Description: Thermally-Enhanced High Power RF LDMOS FETs

PTFA072401EL Product details

Description

The PTFA072401EL and PTFA072401FL are 240-watt LDMOS FETs designed for use in cellular power amplifier applications in the 725 to 770 MHz frequency band.

Features

Broadband internal matching Typical two-carrier WCDMA performance at 770 MHz, 30 V - Average output power = 40 W - Linear Gain = 19 dB - Efficiency = 25% - Intermodulation distortion =.
39 dBc Typical CW performance, 770 MHz, 30 V - Output power at P.
1dB = 240 W - Efficiency = 58% Integrated ESD protection: Human Body Model, Class 2 (minimum) Excellent thermal stability, low HCI drift Capable of handling 10:1 VSWR @ 30 V, 240 W (CW) output power Thermally-enha.
